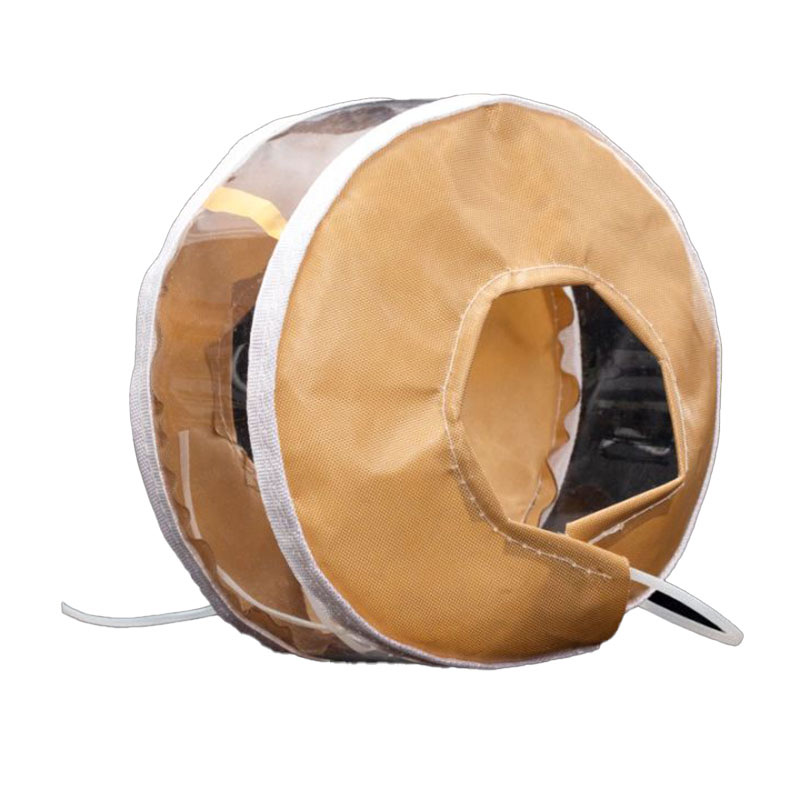

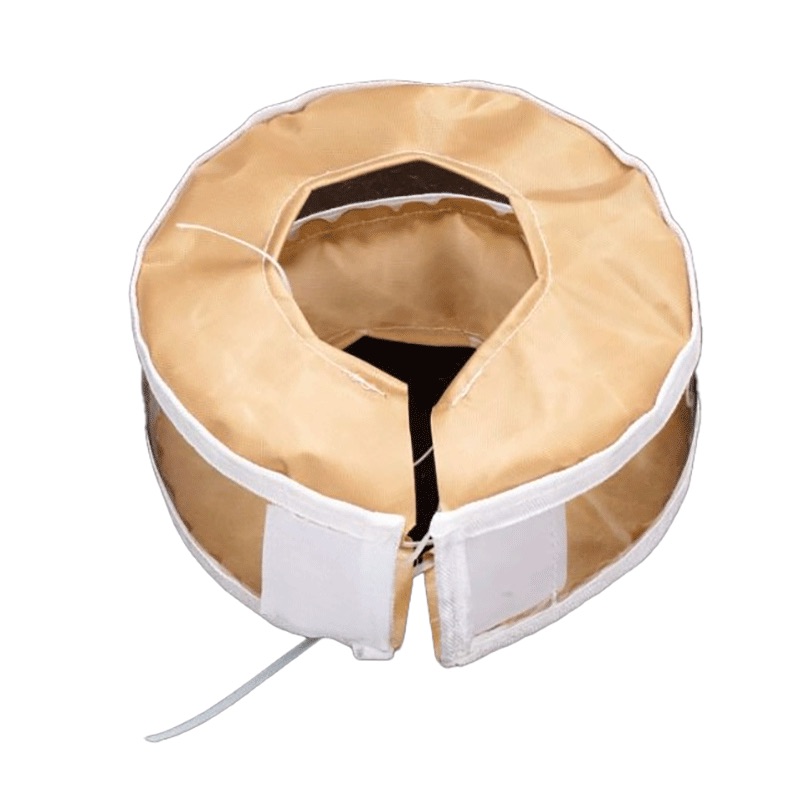

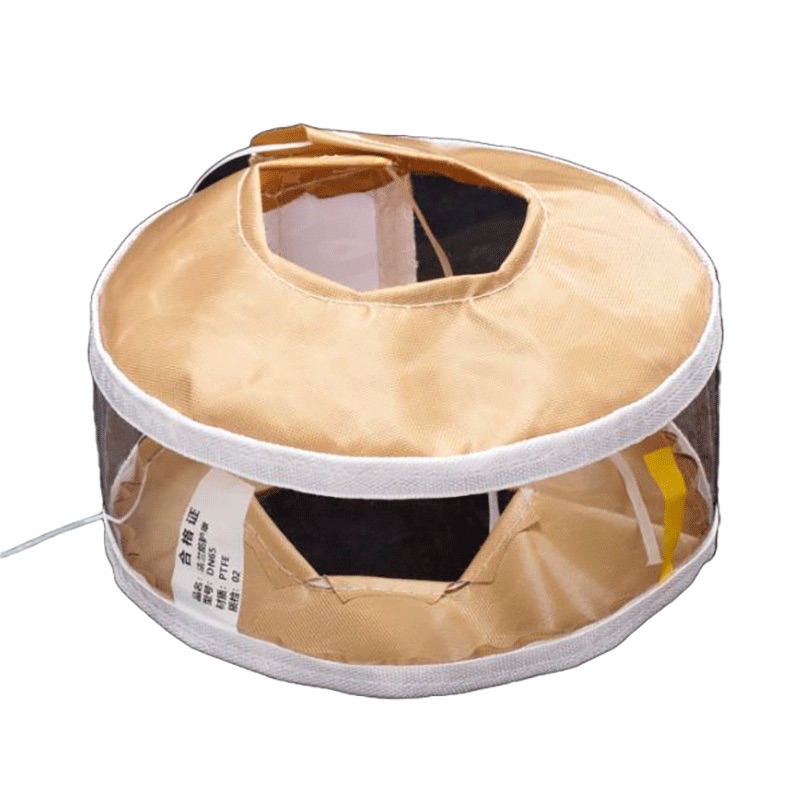

MQ PTFE Flange Guard is made of PTFE material with excellent chemical resistance from -70℃ to 260℃, featuring optional PFA transparent sight window for leak detection and quick installation with PTFE or PP rope.
제품 번호 :
MQ-PTFG주문(MOQ) :
1pc지불 :
TT, LC, Paypal제품 원산지 :
China색상 :
White, coffee, blue, purple, yellow, grey, other custom colors are available선적항 :
Shanghai, Ningbo, Qingdao리드타임 :
3-5 daysDescription
MQ PTFE Teflon Chemical Spray Shield is made of high-quality polytetrafluoroethylene material, designed to protect operators and surrounding equipment from hazardous splashing caused by flange leakage. Available in pure PTFE and PTFE composite materials, with optional transparent sight glass for visual leak detection.
Property
Chemical resistance
MQ PTFE Flange Guard resists the following chemicals under normal operating conditions. For special media, mixed solutions or extreme concentrations, please contact us for confirmation.
|
Inorganic Acids |
Organic Acids |
Alkalis & Salts |
Solvents & Others |
|---|---|---|---|
|
Acetic acid |
Acetaldehyde |
Aluminum nitrate |
Naphtha |
|
Formic acid |
Acetone |
Ammonium chloride |
Phenol |
|
Glacial acetic acid |
Acetophenone |
Ammonium fluoride |
Toluene |
|
Hydrochloric acid 98% |
Aniline |
Ammonium sulfite |
Benzene |
|
Nitric acid 50% |
Ethanol |
Chromium fluoride |
Mercury |
|
Sulfuric acid 98% |
Ethyl acetate |
Copper nitrate |
|
|
Fuming sulfuric acid |
Formaldehyde |
Diethylene glycol sodium |
|
|
Phosphoric acid |
Glucose |
Ferrous nitrate |
|
|
Sulfur trioxide |
Methanol |
Mercury nitrate |
|
|
Chlorine dioxide |
Nitrobenzene |
Potassium hydroxide 50% |
|
|
Chromium trioxide |
Sodium hydroxide 40% |
||
|
Hydrogen peroxide 80% |
Sodium hydroxide 50% |
||
|
Hydrogen peroxide 90% |
Sodium hypochlorite |
||
|
Hydrobromic acid |
Sodium sulfide |
||
|
Hydrofluoric acid |
Calcium hydroxide |
||
|
Chlorosulfonic acid |
Aluminum hydroxide |
||
|
Sulfur dioxide |
|||
|
Hydrogen sulfide |
|||
|
Phosphorus pentachloride |
|||
|
Sodium peroxide |
|||
|
Steam (<300℃) |
Application
MQ PTFE Flange Guard is applied for chemical, petrochemical, pharmaceutical, electroplating, chlor-alkali, food processing, semiconductor, power plants and wastewater treatment. Typical installation positions include pipe flanges, valve flanges, pump connections and sampling points.
Specification
MQ PTFE Flange Guard is made to HG/T20592 by default, please inform us if you require other standards such as ASME, DIN, JIS or others.
|
Material |
Shape |
Temperature Range |
Color |
|---|---|---|---|
|
PTFE Composite |
Rectangular |
-30°C ~ 150°C |
Custom |
|
Pure PTFE |
Round |
-70°C ~ 260°C |
Custom |
|
PTFE + PFA Sight Glass |
Rectangular / Round |
-30°C ~ 150°C |
Custom |
Installation
Our advantages
1. As a professional manufacturer over 15 years, we win our customers with good quality, best service and factory price.
2. Our products are 100% original and have strict QC inspection before shipment.
3. Professional and efficient sales team to serve for you diligently.
4. Sample order is welcomed and will be delivered within 1-3 days.
5. We provide OEM/ODM service according to your requirements.
